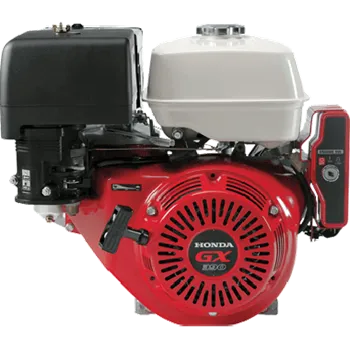

MODEL GX390 TYPE 4-stroke, overhead valve, single-cylinder, horizontal shaftBORE & STROKE 88 x 64mm DISPLACEMENT 389cm3 COMPRESSION RATIO 8.0:1NET POWER 8.2kW (11.0HP) at 3,600rpm MAXIMUM NET TORQUE 25.1Nm at 2,500rpm IGNITION SYSTEM Transistorised magneto ignition STARTING SYSTEM Recoil (Electric Starter Optional) COOLING SYSTEM Forced-Air PTO SHAFT ROTATION Counter-clockwise (from P.T.O. side) FUEL CONSUMPTION AT RATED POWE 3.7 L/h at 3,600rpm RECOMMENDED FUEL Unleaded LUBRICATION SYSTEM Splash RECOMMENDED OIL 10W/30 API SG OIL CAPACITY 1.1L FUEL TANK CAPACITY 6.1L DIMENSIONS 405 x 450 x 443mm DRY WEIGHT 31kg
